Analysis of technical key points of Veyon 2104 desktop low-speed centrifuge in clinical testing and diagnosis
Subtitle: Intelligent systems and kinetic stabilization technology help standardize clinical sample preprocessing
Publish information
- Release date: April 13, 2026
- Author: Weiyu Biology/Application Technology Department
- Instrument category: General laboratory equipment
- Reading time: About 15 minutes
- Keywords: Veyon 2104, desktop low-speed centrifuge, clinical testing, sample separation, automatic balancing, Weiyu Bio, laboratory equipment
Summary

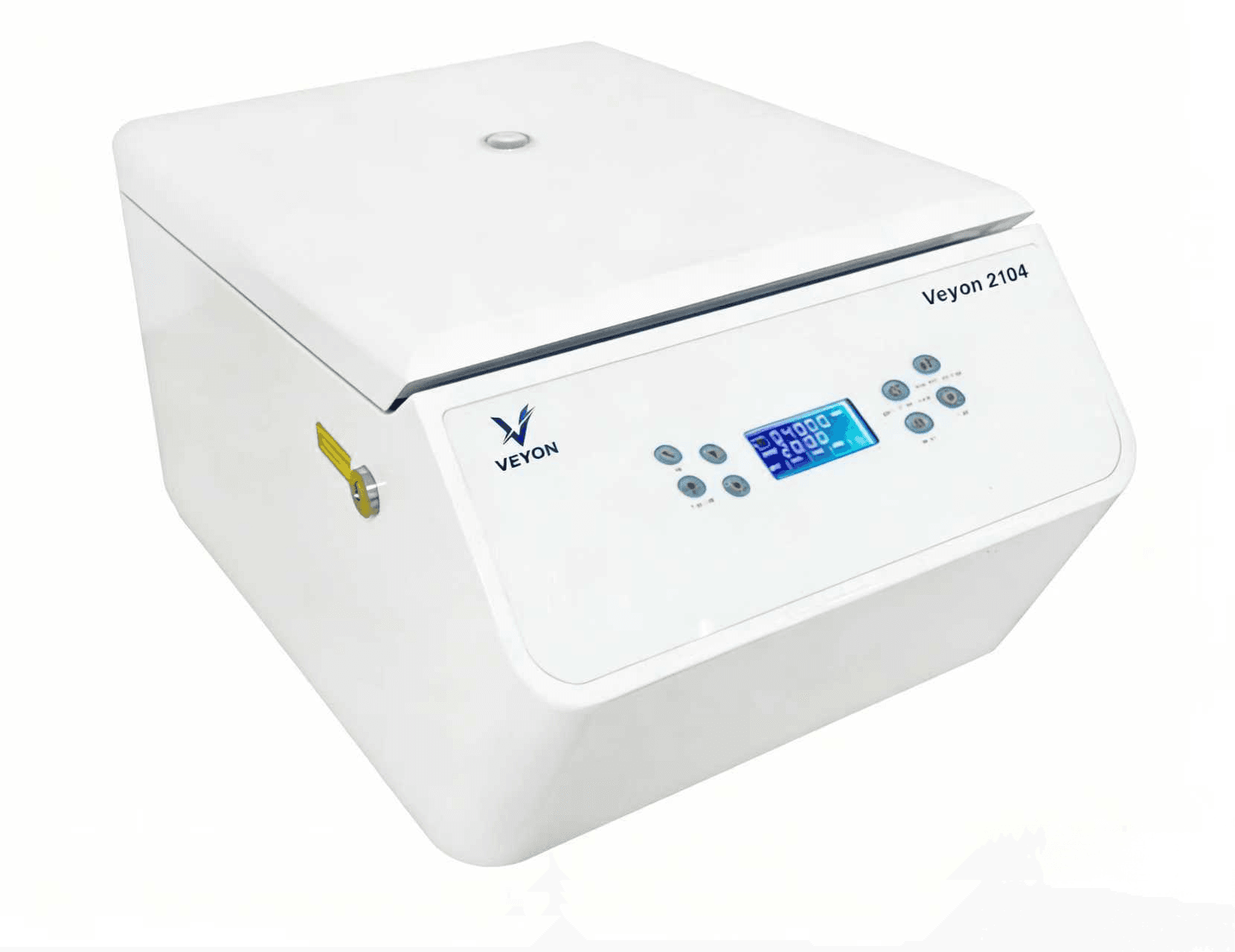

In the clinical testing and diagnosis process, the quality of sample pre-processing is directly related to the accuracy of the final test results. As the core equipment of the laboratory, the stability, ease of operation and intelligence of the centrifuge are crucial. Veyon 2104 desktop low-speed centrifuge is an efficient pre-processing terminal specially designed by Veyon Biotechnology (Guangzhou) Co., Ltd. for clinical laboratories. The device integrates an industry-leading "smart system" with a high-definition full touch screen and a patented three-level shock-absorbing architecture. This article will provide an in-depth analysis of the core technical advantages of Veyon 2104, explore its application value in clinical scenarios such as blood separation and cell concentration, and provide standardized technical reference for inspectors.
Text content
1. Power system: efficient drive and ultra-quiet experience
Veyon 2104 uses an advanced brushless DC motor with a maximum speed of 4000 r/min and a maximum relative centrifugal force of 2600 × g. The application of brushless motors not only completely solves the problem of toner pollution in the laboratory environment, but also significantly reduces mechanical wear and ensures long-life operation of the equipment.
In terms of noise control, the equipment combines Weiyu Biotech’s patented ** triangular link motor fixation and three-stage shock absorption system structure **. This structure firmly fixes the motor to the bottom of the fuselage through the optimal balance point, effectively absorbing the micro-vibrations generated during rotation. Even under high-load operation, the overall noise level remains at ≤60dB (some configurations can reach ≤55dB), providing clinicians and laboratory personnel with a quiet and comfortable operating environment.
2. Intelligent control: 7-inch high-definition full-touch interactive system
Veyon 2104 is equipped with the industry-leading 7-inch high-definition full touch screen intelligent system. The system is extremely practical and durable:
- Operational compatibility: Supports direct operation while wearing laboratory gloves, fully compliant with clinical sterility and biosafety operating specifications.
- Long-term warranty: Weiyu Biotech provides a five-year warranty service for this smart screen, which solves users’ worries.
- Information visualization: The interface displays the rotation speed, centrifugal force, running time, lifting and lowering gears (1-4 gears are optional) and the currently selected rotor specifications on the same screen.
3. Centrifugal process: multi-stage procedures and customized processing
In order to meet the complex separation needs of clinical and scientific research, Veyon 2104 achieves a high degree of flexibility in program management:
- Gradient centrifugation: Experimenters can edit gradient centrifugation programs up to 10 levels. Users can freely set the rotation speed, temperature (for freezing type) and time of each gradient to fully meet the requirements for fine separation.
- Program Storage: The system supports the editing and storage of more than 100 preset programs. Commonly used centrifugation parameters can be called with one click, greatly shortening the preparation time for sample processing.
- Customized input: Supports inputting customized centrifugation programs directly through USB flash drive, enabling system-level application upgrades without disassembling or replacing any hardware parts.
4. Safety protection and hygienic design
- Material corrosion resistance: The centrifuge chamber is made of high-quality stainless steel and coated with a special anti-corrosion coating. Its surface technical performance reaches a hardness of over 2300HV and has passed the 100-hour salt spray test to ensure its durability when exposed to acid and alkali reagents or sample leakage.
- Automatic error correction and monitoring: The equipment has real-time detection function. When the motor is running abnormally, the system will pop up a floating window alarm and shield all buttons to prevent misoperation. At the same time, the system records every operation data in the background to facilitate traceability audits in the laboratory.
- Emergency protection: In addition to the electromagnetic lock, the equipment is equipped with a unique emergency cover opening button. In the event of a sudden power outage, inspectors can safely remove key samples.
- Observation system: The special centrifuge observation tube adopts an upper and lower concave and convex thread port design, which effectively solves the safety risks caused by traditional observation holes that are easy to fall off and are not tightly sealed.
5. Dynamic equilibrium and sample protection
In high-frequency clinical centrifugation work, trimming is a tedious and time-consuming step. Veyon 2104 supports Visual Balance technology, which allows for stable operation by placing sample tubes of approximately equal volumes in symmetrical positions on the rotor without the need for precise balancing. In addition, for the separation of microplates or PCR plates, the equipment has instant acceleration and automatic braking functions, which can quickly settle wall-mounted droplets, significantly improving experimental results.
Application scenarios and case analysis
Main application areas
- Clinical Medical Testing Center (Outpatient/Emergency):
- Application scenario: Whole blood separation (serum/plasma extraction) before biochemical and immune index detection.
- Technical requirements: The centrifugal force is required to be constant and the speed up and down process is smooth to prevent hemolysis.
- Adaptability: Veyon 2104's digital centrifugal force setting and smooth shock absorption technology can perfectly adapt to various specifications of blood collection tubes such as 12×5ml/7ml.
- Reproductive Center and Cytology Research:
- Application scenario: Cell washing, concentration and precipitation in samples.
- Technical requirements: Multi-stage gradient centrifugation is required to ensure cell viability.
- Adaptability: The 10-level gradient centrifugation function provides a solid guarantee for cell recovery rate.
- Pathology and special tests:
- Application scenario: Examination of exfoliated cells in urine, cerebrospinal fluid and other body fluid samples.
- Technical requirements: Accurate centrifugal force and compact equipment size.
- Adaptability: Veyon 2104 has a small size (310×265×215mm) and can be easily deployed on mobile workstations or compact laboratories.
###Appendices and References
Related standards
- GB 4793.7: Safety requirements for electrical equipment for measurement, control and laboratory use: Special requirements for laboratory centrifuges
- YY 0657: General technical conditions for the medical centrifuge industry
- ISO 13485: Medical device quality management system standard
